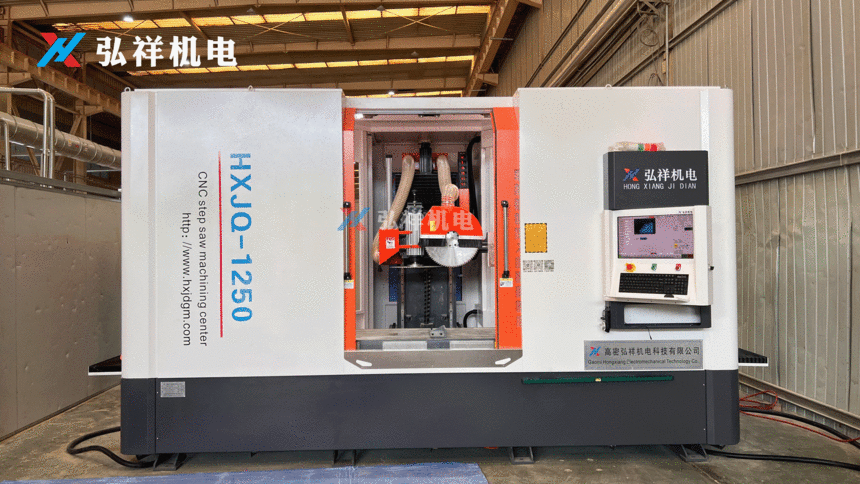

Intelligent Transformation, Precision Manufacturing: How CNC Step Saws Are Reshaping the New Era of Transformer Core ProcessingIn the field of power equipment manufacturing, transformers, as the core devices for electrical energy conversion and transmission, directly impact grid stability and energy efficiency. The manufacturing process of the transformer's "heart"—the core, especially the processing of seemingly minor yet crucial step blocks, has long relied on traditional mechanical methods. These methods are characterized by cumbersome procedures, precision dependent on the operator's experience, and bottlenecks in efficiency improvement. This situation is now being disrupted by an innovative machine called the "CNC Step Saw." It is not merely a machine; it represents a revolution in manufacturing philosophy. Through a self-developed intelligent operating system, specialized programming knowledge is "hidden" in the background, achieving the ultimate simplicity of "input dimensions, one-click processing." This domestically pioneering technology is quietly yet profoundly driving the transformer manufacturing industry towards high-end and intelligent transformation with its high efficiency and precision.

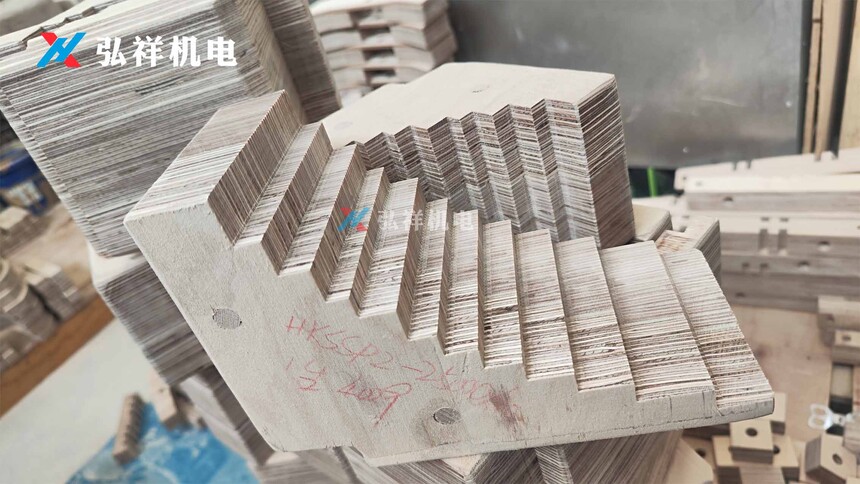

I. Source of Pain Points: The Complex Labyrinth of Traditional Step Block Processing To understand the transformative value brought by the CNC Step Saw, one must first delve into the traditional workshop scene it aims to overhaul. Step blocks in transformer cores are primarily used to support and position silicon steel sheets, ensuring the compactness, verticality, and overall structural stability of the core stack. Due to their special multi-level stepped geometry and precision requirements often controlled within fractions of a millimeter, their machining has always been a delicate and challenging task. Traditional processing typically follows a "process chain": from blanking, marking, rough milling of steps, fine milling/trimming, to multi-facet chamfering, deburring, and final inspection. Each step may involve different equipment (e.g., band saws, milling machines, grinders) and fixtures. The operator requires not only solid machining skills but also rich experience in spatial imagination and dimension conversion, as two-dimensional data on drawings must be accurately translated into the machine tool's three-dimensional movement paths. More complex is that whenever product specifications (e.g., number of steps, height and width of each level) change, it often necessitates redesigning and manufacturing dedicated templates, fixtures, or even adjusting the entire process route. This "process chain" presents several significant pain points:

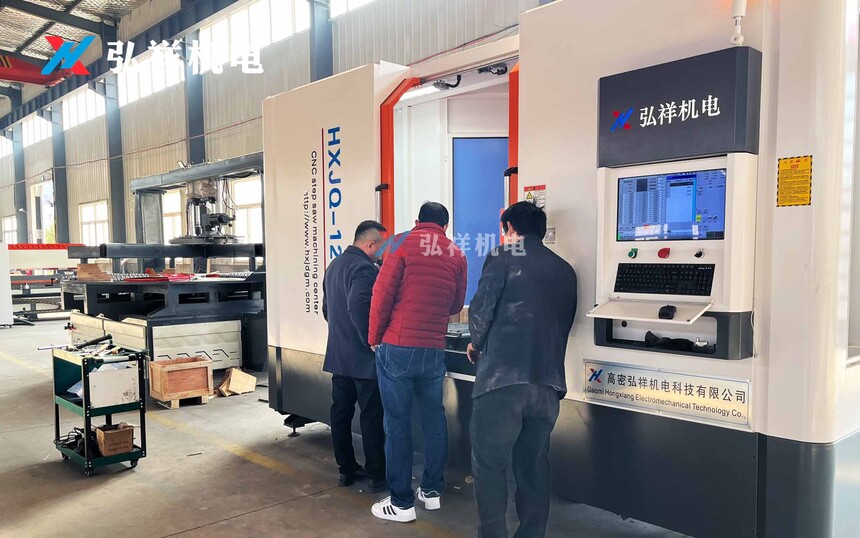

It is in this challenging field that the CNC Step Saw emerged, with its design philosophy directly targeting the core: Simplify complexity, empower manufacturing with intelligence. II. Innovative Core: The Self-Developed Intelligent Operating System and the "One-Click Processing" Model The revolutionary nature of the CNC Step Saw is first reflected in the fundamental reshaping of its human-machine interaction logic. It is not equipped with a generic CNC system requiring complex G-code programming, but rather a self-developed intelligent operating system deeply customized for the step block machining process. This bespoke design is key to "de-specialization." 1. Ultimate Simplification at the Operation Layer: "What You Think Is What You Get" The system interface is deeply humanized, centered entirely on the core parameters of the workpiece. The operator does not need to learn abstract CNC programming languages or understand underlying logic like tool compensation and feed rate algorithms. Their job is simplified to: directly inputting or selecting a few key dimensional parameters of the target step block—such as total height, height and width of each step, chamfer requirements, etc.—on a clear, intuitive touchscreen interface. These parameters are the engineering language intuitively understood by both engineers and operators, not translated machine code. 2. Full Automation at the Process Layer: "Input Means Completion" Once parameters are set, clicking the "Start" button delegates everything else to the machine's intelligence. The advanced control algorithms and process database integrated into the system automatically handle all complex calculations:
This model truly achieves the shift from "how to do" to "what to do." The operator is liberated from the role of a "programmer + technician" requiring deep expertise, becoming a "supervisor" focused on task definition and quality oversight. Complex programming knowledge and process experience are encapsulated and embedded within the intelligent operating system, becoming standardized "wisdom" readily available. III. Force of Transformation: The Triple Leap in Precision, Efficiency, and Flexibility The "input dimensions, one-click processing" model is far more than just simplifying operation; it fundamentally restructures production logic, delivering performance leaps across multiple dimensions. 1. Revolutionary Improvement in Precision and Consistency In traditional multi-step processing, precision is about "subtraction"—striving to control cumulative errors from initial deviations. The CNC Step Saw uses a single clamping and multi-axis linkage to complete all profile machining, fundamentally eliminating repeated positioning errors. Its control system's minimum resolution can reach the micron level, and combined with a high-rigidity mechanical structure, machining accuracy is no longer dependent on an individual's "feel" but guaranteed by the system's physical limits and algorithms. This means not only can individual parts achieve unprecedented high precision, but more importantly, consistency between parts within the same batch and across different batches becomes verifiable and repeatable, laying a solid foundation for performance homogenization of transformer cores. 2. Geometric Growth in Production Efficiency Efficiency gains come from the extreme compression of "non-value-added time":
Overall, the total lead time from drawing to qualified part can be shortened to one-tenth or even less compared to traditional methods, enabling a leap in production capacity. 3. Qualitative Change in Production Flexibility and Responsiveness Faced with changing market demands, rapid response is a core competitive advantage. The flexibility of the CNC Step Saw lies precisely here: to switch processing specifications, one only needs to input new parameters into the system, without changing fixtures or re-adjusting the machine. This makes economical "one-piece flow" customization feasible. Whether for prototyping in R&D or orders for small batches of varied specifications, the equipment can respond with almost the same efficiency and cost. This significantly enhances a manufacturer's ability to handle diverse orders and adapt to the rapid iteration of power grid technologies. IV. Industry Resonance: Industrial Chain Upgrading Behind the Domestically Pioneering Technology As a "domestically pioneering" technology, the significance of the CNC Step Saw transcends the value of a single machine. It reflects a profound shift in China's high-end equipment manufacturing industry: from following and imitating to independent innovation, from solving "whether it exists" to pursuing "excellence."
V. Future Outlook: From a Single Device to an Ecosystem The "Intelligent Operating System" of the CNC Step Saw is an open starting point. The direction for future evolution is clear:
Conclusion The story of the CNC Step Saw is one where "simplification" creates "complex value." It uses an extremely simple user interface to encapsulate the highly complex multidisciplinary technology behind it; it replaces the burden of the traditional process chain with the ease of "one-click operation." This device, born for processing transformer core step blocks, with its domestically pioneered intelligent operating system, not only fundamentally simplifies traditionally complex processes and significantly enhances production precision and efficiency, but more importantly, it symbolizes the dawn of a new era. In this era, the threshold for high-end manufacturing is being continuously lowered by intelligent technology, and the very soul of manufacturing—"precision, efficiency, flexibility"—is being realized in a more accessible way. As "input dimensions, one-click processing" transitions from vision to shop floor routine, we witness not just the success of a single device, but a solid and clear footprint in the firm stride of "Made in China" towards "Intelligently Made in China." |
