End Ring Cutting Saw: Ushering in a New Era of Precision and Efficiency in End Ring Manufacturing

In modern industrial production, end rings serve as indispensable packaging and support components, widely used in numerous industries such as electromechanical equipment, precision instruments, and food packaging. However, traditional end ring production methods have long faced four major pain points: difficulty in controlling precision, serious material waste, low production efficiency, and high dependence on skilled workers. Breaking through these bottlenecks to achieve intelligent, precise, and efficient transformation of end ring manufacturing has become a critical challenge urgently needing resolution in the industry.

• Precise Application Targeting
  The End Ring Cutting Saw is an innovative equipment specifically developed for the core process in end ring production—paperboard blanking. Unlike general-purpose cutting equipment, this product is deeply focused on the special process requirements of end ring manufacturing from its initial design phase. Whether for mass production of standardized end rings or customized processing of irregular components like reducer end rings, it provides perfectly matched solutions.
  The equipment adopts a modular and intelligent design philosophy, integrating a high-precision motion control system, adaptive cutting algorithms, and a user-friendly operation interface to form a complete end ring cutting solution. Its working range covers various end ring specifications with diameters from 30mm to 1000mm and can process multiple paperboard materials with thicknesses from 0.3mm to 8mm, truly achieving the application advantage of "one machine, multiple capabilities, comprehensive coverage."

• Process Optimization Creates Multiple Values
  In traditional production models, end ring cutting requires multiple steps such as marking, cutting, and correction, which is not only a cumbersome process but also prone to error accumulation at each stage. The End Ring Cutting Saw integrates these multiple steps into a continuous, automated process through process consolidation and technological innovation, completing the entire process from paperboard to formed end ring blank in a single setup.
  This integrated process design delivers significant advantages: cutting precision improves from the traditional ±1mm to within ±0.1mm, with dimensional consistency reaching over 99.5%; material utilization increases by 20%-30%, significantly reducing raw material costs; the production cycle is shortened by 60%-70%, markedly enhancing delivery speed. The cumulative benefits of these improvements are particularly substantial in large-scale production.

• Minimalist Parameter Input System
  Faced with the complex end ring cutting process, traditional equipment often requires operators to input dozens of parameters and perform tedious debugging and calibration. The End Ring Cutting Saw fundamentally changes this situation through intelligent design, streamlining the necessary operational parameters to 3-5 core ones.
  Operators only need to input basic parameters such as end ring inner diameter, outer diameter, and paperboard thickness on the intuitive touchscreen interface. The device's built-in intelligent algorithm then automatically calculates over a hundred process parameters, including the optimal cutting path, tool angle, and feed speed. This "simplifying the complex" design philosophy enables even completely inexperienced novice operators to grasp basic operations within 30 minutes and reach proficient levels within a week.

• Intelligent Memory and Rapid Changeover
  Driven by diverse market demands, end ring manufacturers often need to frequently switch between different product specifications. Changing over traditional equipment requires hours of adjustment and testing, severely impacting production continuity. The intelligent memory system of the End Ring Cutting Saw can store complete parameter sets for over 500 commonly used end ring specifications, enabling "one-touch changeover."
  When switching production specifications, the operator simply selects the corresponding program from the storage library. The equipment automatically completes all parameter settings and mechanical adjustments within 30 seconds, ready to start production of the new product immediately. This rapid changeover capability is especially suitable for modern production models involving multiple varieties and small batches, allowing enterprises to respond flexibly to market changes and seize more business opportunities.

• Intelligent Response to Complex Working Conditions
  In actual production environments, factors such as batch variations in paperboard material, ambient temperature and humidity changes, natural tool wear, and mechanical play in the equipment can all affect cutting precision. Traditional automated equipment often performs rigidly in the face of these variables, while the End Ring Cutting Saw ingeniously solves this challenge with its unique "Manual Compensation Function."
  This function allows experienced operators or process engineers, based on the device's automatic operation, to make fine adjustments to cutting parameters according to real-time observations and personal professional experience. The compensation range covers key parameters like cutting speed, tool pressure, feed rate, and angle correction, with adjustment precision reaching the 0.01mm level. These adjustments can be completed through simple touchscreen operations without the need for equipment stoppage or complex mechanical adjustments.

• Human-Machine Collaborative Work Mode
  The Manual Compensation Function creates a unique human-machine collaborative work mode: the equipment handles repetitive, standardized tasks, maintaining efficient and stable baseline output; meanwhile, operators focus on identifying anomalies and optimizing processes, leveraging the unique human advantages in pattern recognition and experience-based judgment.
  This collaborative mode demonstrates significant advantages in practice: under standard conditions, the equipment runs fully automatically, achieving maximum production efficiency; under special conditions (e.g., when processing new materials, handling urgent orders, or performing particularly precise machining), operators can intervene with fine-tuning to ensure product quality. Data shows that customers adopting this mode have seen their product first-pass yield rate increase by an average of 15% and their response speed to special orders improve by 40%.

• Precision Cutting and Efficient Production

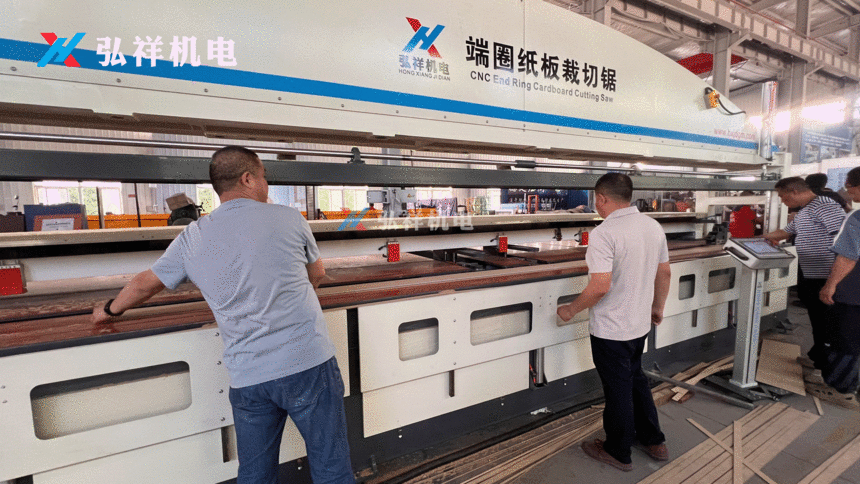

  The End Ring Cutting Saw utilizes a closed-loop servo control system and high-precision ball screw drive, coupled with advanced vibration suppression algorithms, achieving a cutting accuracy of ±0.1mm, reaching industry-leading levels. The specially designed tool system and automatic sharpening function ensure consistent cutting quality during long-term continuous production.
  The equipment's cutting speed can reach 30-50 cycles per minute, which is 8-10 times that of traditional manual cutting and 3-5 times that of ordinary semi-automatic equipment. Combined with automatic feeding systems and finished product collection devices, it can form a continuous production line, enabling 24/7 uninterrupted operation. Taking standard specification end rings as an example, a single machine's daily output can reach 15,000-25,000 pieces, sufficient to meet most of the production needs of medium-sized enterprises.

• Flexible Adaptation and Quality Assurance

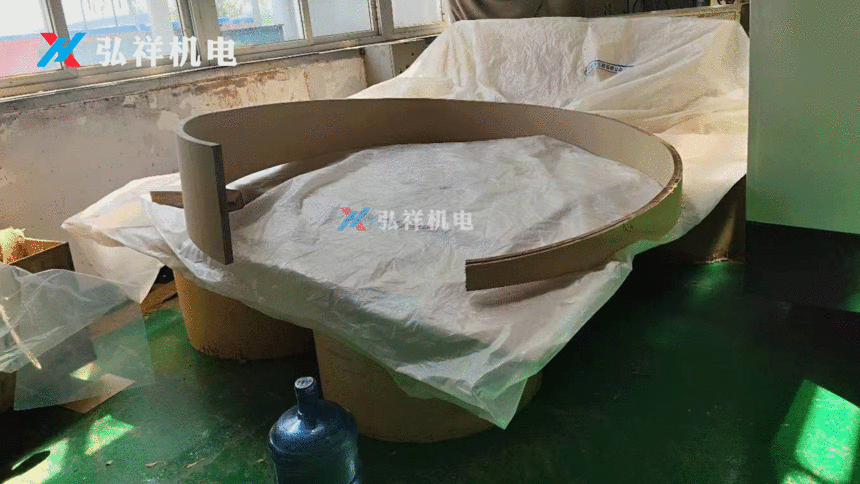

  The equipment can handle various end ring shapes, including circular, oval, and polygonal, supporting different edge forms like straight, beveled, and stepped edges. The adaptive clamping system can securely hold everything from the thinnest corrugated paperboard to the thickest industrial paperboard, preventing deformation and displacement during processing.
  The intelligent quality monitoring system detects key parameters during the cutting process in real-time, such as cutting force, tool temperature, and finished product dimensions. If any abnormality is detected, it immediately alarms and suggests possible causes and solutions. Complete processing data for each batch of products is automatically recorded and reports are generated, offering data support for quality traceability and improvement.

• Energy Saving, Environmental Protection, and Safety Design
  Compared to traditional equipment, the End Ring Cutting Saw reduces energy consumption by over 30% and controls noise levels below 75 decibels, creating a more comfortable and safer working environment. A fully enclosed protective design and multiple safety interlock devices ensure operator safety. The intelligent energy-saving mode automatically reduces power consumption during standby, further decreasing operating costs.

• Successful Application Cases Across Multiple Industries

• In the packaging industry, a well-known packaging enterprise introduced the End Ring Cutting Saw. Subsequently, staffing in its end plate workshop was reduced from 12 to 4 people, while daily output increased from 8,000 to 20,000 pieces. Product precision consistency improved significantly, and customer complaint rates dropped by 90%.

• In the electromechanical equipment industry, a motor manufacturer used the End Ring Cutting Saw to produce motor end cover buffer rings, resolving long-standing issues with dimensional variation. This increased the automation level of their motor assembly line from 70% to 95% and boosted assembly efficiency by 30%.

• In the food packaging industry, the all-stainless-steel design and easy-to-clean structure of the End Ring Cutting Saw helped a food packaging company successfully pass FDA and ISO22000 certifications, laying the foundation for its entry into high-end international markets.

• Return on Investment and Long-Term Value
  The typical investment payback period for the End Ring Cutting Saw is 8-15 months. Beyond the direct improvements in production efficiency and cost savings, the equipment also delivers long-term value in multiple aspects:

• Reduces dependence on skilled workers, mitigating human resource risks.

• Improves product quality stability, enhancing customer trust and brand value.

• Shortens delivery cycles, improving market responsiveness.

• Reduces material waste, supporting corporate sustainable development goals.

• Accumulates production data, laying the groundwork for building a digital factory.
