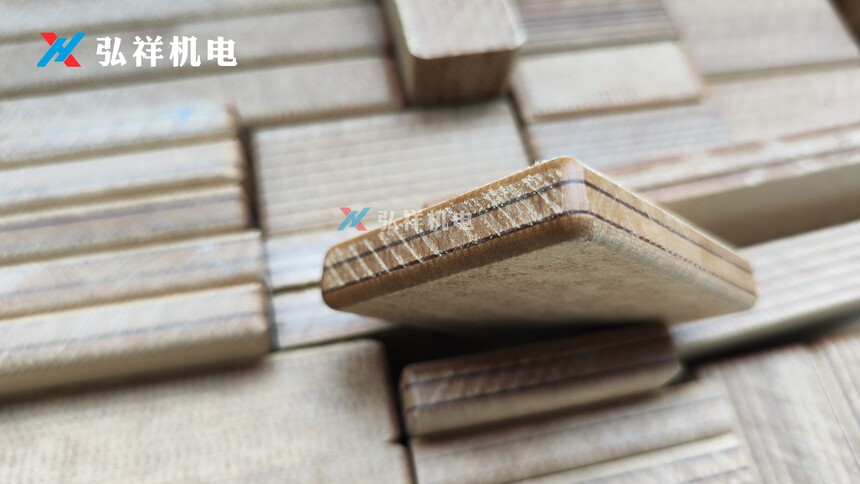

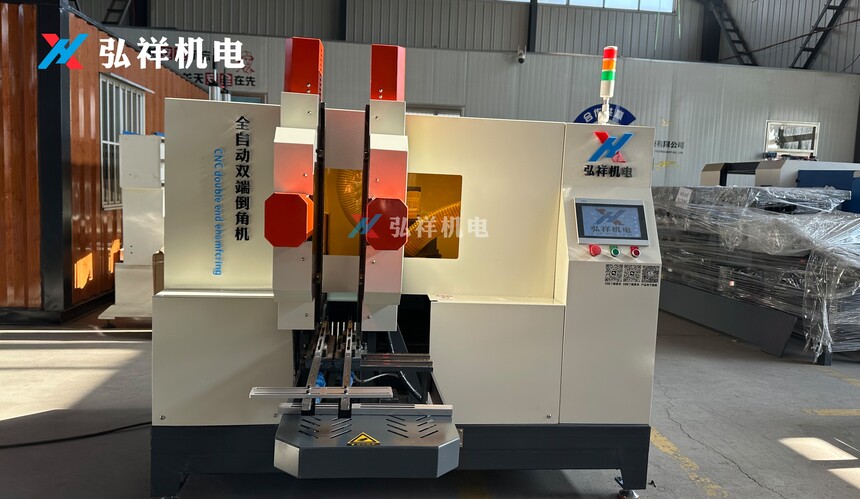

Fully Automatic Double-End Chamfering Machine: The Cornerstone and Value Creator for Building Intelligent Transformer FactoriesIn the grand narrative of global manufacturing's transition towards intelligence, sustainability, and high-end development, the transformer manufacturing industry—central to energy infrastructure—faces both pressure and impetus for transformation. Cost reduction, efficiency improvement, quality enhancement, and rapid market responsiveness are the perpetual pursuits of all manufacturing enterprises. The breakthrough in this transformation often begins with the profound reshaping of key production processes. The fully automatic double-end chamfering machine, a device specifically engineered for processing transformer yoke pads, represents precisely such a pivotal breakthrough point. By achieving "efficient synchronous double-end processing," "fully unattended operation," and "independent control of processing and material storage systems" for the pads, it not only revolutionizes a specific process but also, with its outstanding modular, automated, and informational DNA, becomes an indispensable cornerstone and a core value-creating unit for constructing the intelligent transformer factories of the future.
I. Beyond a Standalone Machine: A Key Node in the Intelligent Production Network In the vision of Industry 4.0, the ideal factory is an organic entity where equipment, systems, people, and products are interconnected in real-time and collaborate dynamically. The design of the fully automatic double-end chamfering machine inherently possesses the potential to become an exemplary "citizen" within this networked production system. First, its architecture of "independent control of the processing system and the material storage system" is essentially a modular design oriented towards interfaces. The processing unit is an efficient, focused "executor," while the material storage unit is a flexible, open "interaction interface." This standardized material interaction interface enables the equipment to easily communicate with a broader production ecosystem. Upstream, Automated Guided Vehicles (AGVs) or mobile robots can, based on scheduling instructions from the Manufacturing Execution System (MES), accurately deliver standardized carriers (such as material trays or carts) containing blanks of specific pad specifications to the equipment's material storage interface. Downstream, the finished products are automatically output after processing, awaiting AGVs to transport them to the next process, such as cleaning, inspection, spraying, or pre-assembly stations. Consequently, the material flow achieves seamless, just-in-time (JIT) automated movement from the warehouse to the production line and between processes, significantly reducing work-in-process (WIP) inventory, handling wait times, and human error. Second, the equipment itself is a powerful data generator and actuator. Through built-in sensors and Internet of Things (IoT) gateways, it can transmit rich status data in real-time to the cloud or a factory-level monitoring center. This data includes the current operating mode, production count, spindle load, tool usage time, fault alarm codes, and energy consumption information. Aggregated into the MES or Advanced Planning and Scheduling (APS) system, this data makes the production status completely transparent and visible. Managers can gain real-time insights into the utilization rate (Overall Equipment Effectiveness, OEE) of each piece of equipment, conduct precise capacity assessments and production scheduling. The maintenance department can implement predictive maintenance based on tool life predictions or vibration trend analysis, shifting from reactive repairs to proactive upkeep, thereby maximizing equipment availability. Simultaneously, the MES can also issue new production orders and process parameter packages directly to the equipment, enabling remote one-click product changeovers. At this point, the equipment transforms from a passively executing "dumb device" into an "intelligent terminal" capable of receiving commands, providing feedback, and optimizing operations. II. Deepening Value Dimensions: A Trio of Quality, Cost, and Flexibility The value created by the fully automatic double-end chamfering machine is multidimensional, quantifiable, and profoundly impactful. 1. Quality Value: From "Conformity" to "Exceptional Consistency" Benefiting from "synchronous double-end processing," the workpiece is fixtured once to complete both ends, eliminating datum conversion errors. Combined with a highly rigid mechanical structure and precise servo control, the consistency and repeatability of its machining reach an extremely high level. This means that tens of thousands of pads possess nearly identical geometric dimensions and chamfer quality. This micro-level consistency translates, on a macro scale, to excellent flatness and compactness of the transformer core after lamination. The direct benefits are: reduced core eddy current losses and no-load losses, improved energy efficiency; decreased noise and vibration caused by uneven stress distribution, enhancing the product's acoustic quality; and providing a more accurate reference for subsequent winding assembly, improving overall assembly quality and reliability. In the lifecycle cost of a transformer, operating losses constitute a significant portion. Therefore, the long-term economic benefits derived from the energy efficiency gains enabled by top-tier processing quality far exceed the cost of the equipment itself. 2. Cost and Efficiency Value: Reconstructing the Production Cost Structure Cost savings are multidimensional:
3. Flexibility Value: Enabling a Future of Small Batches and High Variety Modern market demands for transformers are increasingly diverse, with a growing proportion of customized and special-purpose transformers. The independently controlled material storage system supports rapid changeovers. Through preset programs or combined with RFID/barcode technology for automatic material identification, the equipment can complete product switching within minutes, enabling mixed-flow production of various pad specifications. This flexibility allows enterprises to respond to small-batch, high-variety orders with efficiency and cost levels approaching those of mass production, enhancing market responsiveness and competitiveness. It makes "mass customization" feasible in the manufacturing of core transformer components. III. Implementation Path and Future Evolution: Towards Higher-Order Intelligent Manufacturing Introducing the fully automatic double-end chamfering machine is an excellent starting point for a company's intelligent upgrade. The implementation path should be gradual:
Looking ahead, this equipment will integrate with more cutting-edge technologies: integrating machine vision to achieve automatic identification, positioning, and preliminary quality inspection of incoming materials; leveraging artificial intelligence algorithms to adaptively optimize cutting parameters for optimal processing of different materials; utilizing digital twin technology to simulate the entire lifecycle of the equipment, enable predictive maintenance, and facilitate remote operation and maintenance in a virtual world. Conclusion The significance of the fully automatic double-end chamfering machine extends far beyond completing a single process. It is a precise automation platform, a reliable data node, and a flexible production unit. Starting from enhancing the "quality" and "efficiency" of a micro-level process point, it ultimately brings about profound changes in "intelligence" and "flexibility" to the entire transformer manufacturing system. In constructing a smart manufacturing future driven by data, such equipment is no longer a mere tool but a value-creating cornerstone that carries the core competitiveness of enterprises and empowers industrial upgrading. It clearly demonstrates that the path to intelligent manufacturing begins with an unwavering pursuit of excellence and the intelligent transformation of every fundamental manufacturing process. |
