Precision Tool, Efficiency Revolution – A Deep Technical Analysis and Application Prospects of Fully Automatic Four-Sided Edge Rounding Machines

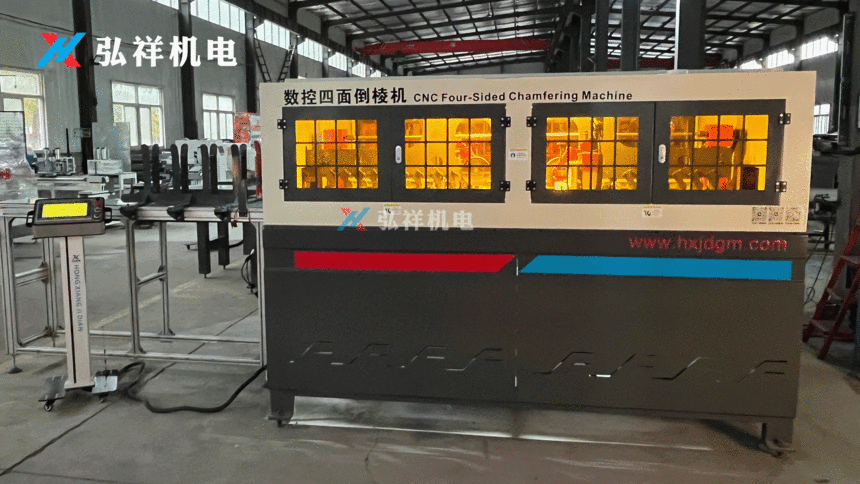

In the fields of wood product manufacturing, decorative materials, packaging, and precision block production, the quality and efficiency of edge processing directly determine a product's texture, safety, and production costs. Traditional manual or single-sided chamfering methods suffer from low efficiency, poor consistency, and a high reliance on skilled workers, which have become bottlenecks constraining capacity expansion and quality enhancement. The emergence of the fully automatic four-sided edge rounding machine marks a profound efficiency revolution specifically targeting "edge processing." This article will use a typical machine as an example to deeply analyze how it achieves highly efficient and precise simultaneous chamfering on the four longitudinal edges of bar-shaped laminated wood, laminated cardboard, cushion blocks, and wood semi-finished products.

1. "Fully Automatic": This means the entire process—from feeding, positioning, clamping, feeding, chamfering, to ejection—operates without human intervention. The equipment integrates high-precision servo drive systems, PLCs (Programmable Logic Controllers), and HMIs (Human-Machine Interfaces). Once parameters are preset, it enables continuous, stable batch production.

2. "Four Longitudinal Edges": This clarifies the machine's processing scope. It is specifically designed for elongated workpieces, machining the four lengthwise edges. This distinguishes it from equipment designed for processing end faces or complex curved edges.

3. "Simultaneous Chamfering": This is the key to the leap in efficiency. The machine is typically equipped with four independently adjustable chamfering heads (top, bottom, left, and right). As the workpiece passes through the processing zone in a single run, all four cutting tools operate synchronously, completing the machining of all edges at once, taking as little as one-fourth the time of single-sided machines or even less.

4. Processing Objects:

• Bar-shaped Laminated Wood: Commonly used for furniture edge banding, decorative moldings, stair handrails, etc. It requires smooth, burr-free chamfers to enhance tactile feel and aesthetics.

• Laminated Cardboard: In the production of high-end packaging boxes and display stands, chamfering prevents edge delamination, improves rigidity, and gives the product a more refined appearance.

• Cushion Blocks: For cushion blocks used in precision instruments and mechanical equipment, edge chamfering (deburring) is crucial to prevent scratches and ensure uniform stress distribution.

• Wood Semi-finished Products: Refers to items like flooring, wall panels, and table tops that require edge pre-treatment before final assembly or finishing. This facilitates subsequent joining or reduces finishing flaws.

1. Mechanical Structural System:

• Bed and Guides: Utilize high-rigidity cast iron or welded steel construction to ensure stability during high-speed operation. Precision linear guides guarantee smooth, creep-free feeding.

• Feeding System: Often employs servo motors driving precision ball screws, or variable-frequency motors driving gear racks, enabling stepless speed regulation and precise feed.

• Clamping and Centering Mechanism: Equipped with self-adaptive pressure rollers or conveyor belt feeding devices to accommodate workpieces of varying thicknesses. They securely hold the workpiece during processing to prevent vibration or deviation. Some high-end models feature automatic centering to ensure the workpiece center aligns with the machining center.

• Power Head System: The absolute core. Each power head consists of a high-speed spindle motor (typically variable-frequency or servo-driven), a high-precision tool holder, and the forming cutter. Cutters can be selected from carbide inserts or diamond-tipped tools based on the material. All power heads are finely adjustable via handwheels or servo motors to precisely control chamfer dimensions (e.g., radius or width).

2. Electrical Control System:

• Control Core: Based on an industrial PLC, it coordinates all motion sequences and processes sensor signals (e.g., photoelectric sensors for workpiece position, encoders for feed speed).

• Drive System: Servo drives control the feed and axis adjustments, ensuring speed and positional accuracy.

• Human-Machine Interface (HMI): A color touchscreen offers an intuitive interface for parameter setting (workpiece dimensions, chamfer specifications, feed speed, etc.), program recall, fault diagnosis, and production data statistics.

3. Tooling and Process Technology:

• Based on the distinct properties of laminated materials (especially those with high-hardness wear layers) and wood-based materials, cutter material, geometry, and coating are specially designed. Forming cutters can produce complex round-overs, bevels, or even decorative profiles in a single pass.

• A dust collection system is an essential accessory. Powerful suction ports near the cutting points promptly remove generated dust, protecting machine accuracy and improving the working environment.

1. Drastic Improvement in Production Efficiency: Simultaneous processing of all four sides makes it several times faster than traditional methods, ideal for large-scale, standardized production.

2. Superior Guarantee of Processing Quality: The consistency of machine processing eliminates variations caused by human factors. Each workpiece features identical chamfer dimensions and finish, significantly enhancing product quality.

3. Significant Reduction in Comprehensive Costs: While there is an initial investment, it drastically reduces reliance on skilled labor, lowering labor and training costs. High efficiency reduces per-unit processing costs. Lower scrap rates further save on material costs.

4. Enhanced Safety: Fully or semi-enclosed processing areas isolate high-speed rotating tools from the operator. Combined with safety interlock devices, this fundamentally prevents the risk of work-related injuries.

5. Drives Industry Upgrading: Enables industries like furniture, doors/windows, decorative moldings, and packaging to undertake more complex, higher-quality orders with greater cost competitiveness, promoting the automation and intelligent development of the entire industry chain.
