How Cutting-Edge Technology Reshapes the Benchmark for Insulation Block Processing

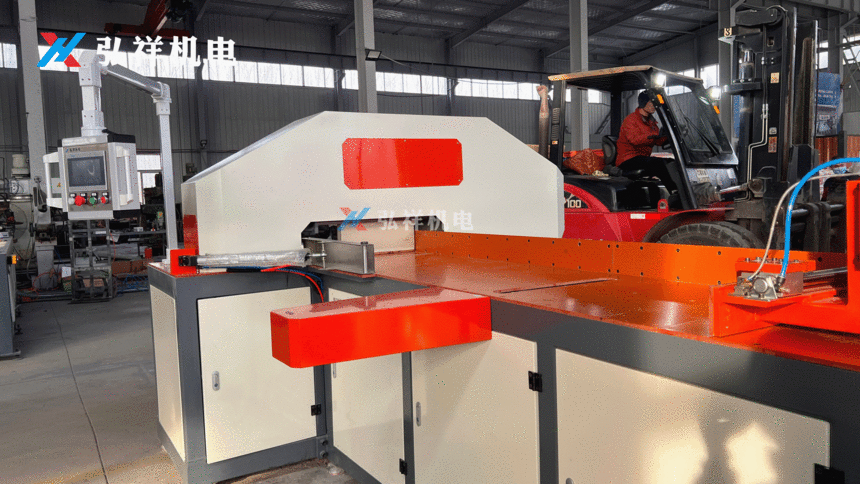

In the realm of modern industrial manufacturing, efficiency, precision, and consistency are the core metrics for measuring production standards. Particularly in industries such as electrical materials and electrical equipment manufacturing, insulation components serve as critical foundational elements ensuring safety and performance. Their processing quality directly impacts the reliability of the final product. Traditional insulation block processing, reliant on manual labor or semi-automatic equipment, suffers from numerous pain points including low efficiency, inconsistent dimensions, variable cut quality, and cumbersome burr removal. The introduction of fully automatic cutting machines, with their integrated advantages of "CNC control, automatic counting, continuous cutting, and smooth, burr-free cuts," is revolutionizing the production paradigm in this field, becoming the ultimate solution for batch precision sawing of insulation blocks.

1. CNC Control: The Cornerstone of Intelligence and Precision
   "CNC control" is the "brain" of the fully automatic cutting machine. It is not merely a simple program switch but a sophisticated command system based on computer numerical control technology. Operators simply input processing parameters—such as target length, quantity, and feed rate for the insulation blocks—via a user-friendly Human-Machine Interface (HMI). The control system then drives servo motors or stepper motors to precisely coordinate the actions of the feeding mechanism, clamping device, and cutting spindle. Its advantages lie in:

• Extremely High Repeatability Accuracy: Eliminates random errors introduced by manual operation, ensuring thousands of insulation blocks are cut with consistent dimensions, maintaining tolerances stably within ±0.1mm or even tighter, meeting high-specification assembly requirements.

• Flexible Production: Programs can store multiple machining plans. Switching product specifications only requires calling the corresponding program, eliminating the need for complex fixture changes, drastically reducing setup time, and adapting to the flexible production needs of small batches and multiple varieties.

• Process Parameter Optimization: Allows precise control of cutting speed and feed rate, identifying the optimal combination of cutting parameters for different materials (e.g., epoxy board, phenolic cloth board, mica board, nylon), ensuring cut quality while extending blade life.

2. Automatic Counting and Continuous Cutting: The Engine of Unmanned, High-Efficiency Operation
   The "automatic counting" function and "continuous cutting" capability complement each other, forming the core of the equipment's efficient, unmanned operation. The machine integrates high-precision sensors (e.g., photoelectric encoders, proximity switches) to provide real-time feedback on feed length, ensuring precise positioning of each material segment. The counting system not only records the number of completed cuts but can also link with preset batch quantities, enabling "set-and-forget" automated production. Coupled with an automatic feeding mechanism (e.g., roller feed, belt feed, or robotic gripper), the equipment can continuously grasp, convey, position, clamp, cut, and discharge materials from a stock of long raw material bars, forming a closed processing loop. Operators only need to periodically replenish raw materials and collect finished products, completely liberating manpower from repetitive, monotonous labor, enabling 24/7 uninterrupted production. Productivity can increase several-fold compared to traditional methods.

3. Smooth, Burr-Free Cuts: A Revolution in Quality and Post-Processing
   "Smooth, burr-free cuts" are the most intuitive and critical technical indicators for evaluating cutting quality. Fully automatic cutting machines achieve this goal through synergistic design in several aspects:

• High-Quality Cutting Unit: Utilizes a high-rigidity spindle structure equipped with specially designed carbide or diamond saw blades, ensuring minimal radial runout at high rotational speeds, reducing vibration and tearing at the source.

• Optimized Cutting Dynamics: The CNC system precisely matches blade speed and feed rate, avoiding material chipping due to excessive feed or friction burning from insufficient feed. For laminated insulation materials, delamination can be effectively prevented.

• Effective Vibration Suppression and Clamping: Equipped with hydraulic or pneumatic precision clamps that provide stable, reliable holding of the material near the cut point, preventing burrs or dimensional deviations caused by vibration during cutting.

• Integrated Deburring Design: Some high-end models integrate automatic chamfering, grinding, or high-pressure air nozzle cleaning immediately after cutting, ensuring the output is a perfect finished product.

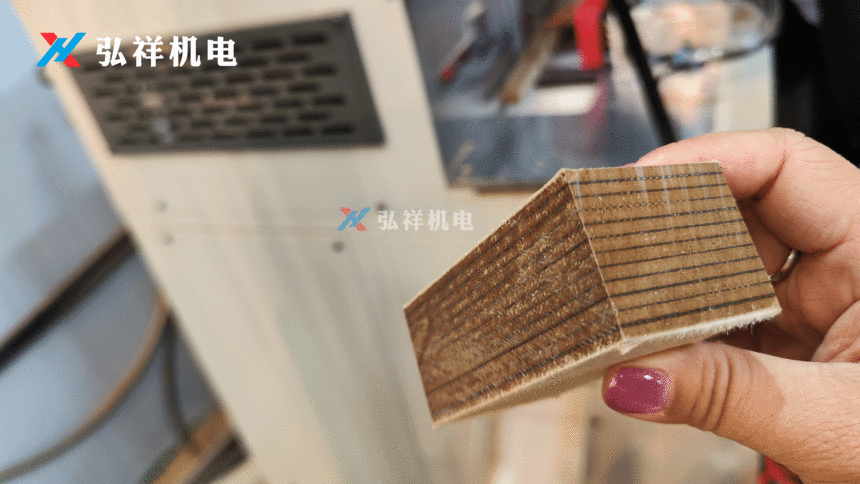

  Smooth, burr-free cuts mean: more stable insulation performance, avoiding the risk of corona discharge; smoother assembly, reducing manual finishing steps; consistent, aesthetically pleasing product appearance, enhancing overall quality perception.

• Production Mode Upgrade: Shifting from labor-intensive to technology-intensive, reducing reliance on skilled technicians and enhancing overall manufacturing controllability and stability.

• Comprehensive Cost Reduction: Although the initial investment is higher, significant long-term comprehensive benefits are achieved through greatly improved material utilization (optimized nesting), reduced scrap rates, and savings in labor and post-processing costs.

• Quality System Strengthening: Enables digital and standardized management of processing quality. Precise machining data is traceable for each batch of products, providing a solid foundation for product quality certification and process control.

• Promoting Design Optimization: Stable processing capabilities allow designers to more boldly adopt more precise and structurally complex insulation component designs, thereby improving the performance and compactness of complete equipment.
