Revolution in Insulation Material Processing: The Key Role of CNC Support Bar Grooving Machines in Transformer ManufacturingTransformers, as core equipment in power systems, rely on the reliability of their insulation systems to ensure the safety and stability of the entire power grid. Insulation support bars, as critical components in transformer insulation structures, serve dual functions of mechanical support and electrical insulation. Their processing quality profoundly impacts transformer performance. As the power industry advances toward higher voltage levels, larger capacities, and more compact designs, the requirements for the processing precision, efficiency, and consistency of insulation support bars have reached unprecedented levels. The emergence of CNC support bar grooving machines, with their customized design for insulation materials, efficient and damage-free processing capabilities, and consistently stable quality output, is driving a profound transformation in transformer insulation component processing technology.
I. Insulation Material Characteristics and Processing Challenges Common materials for transformer insulation support bars include laminated wood, epoxy glass cloth boards, and dianisidine composite boards. These materials exhibit a series of unique properties: high mechanical strength but brittleness, excellent insulation performance but sensitivity to heat, and significant anisotropy, which complicates processing. Traditional processing methods, such as conventional milling or manual grooving, face numerous limitations:

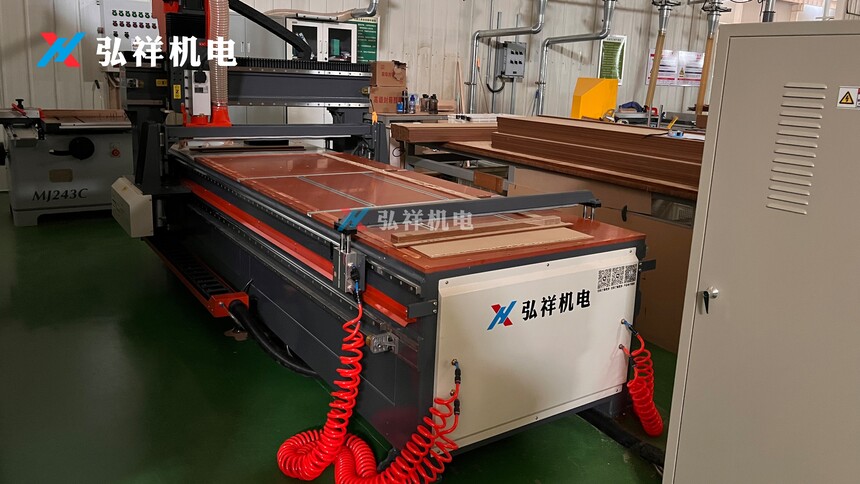

These issues are particularly pronounced in high-end applications such as high-voltage direct current (HVDC) converter transformers and offshore wind power transformers. According to statistics, the rejection rate of insulation support bars under traditional processing methods can reach 5%–10%, posing a significant bottleneck for cost control and quality management in transformer manufacturing. II. Technological Innovations and Design Breakthroughs in CNC Support Bar Grooving Machines To address these challenges, CNC support bar grooving machines have undergone comprehensive innovations in design and functionality:

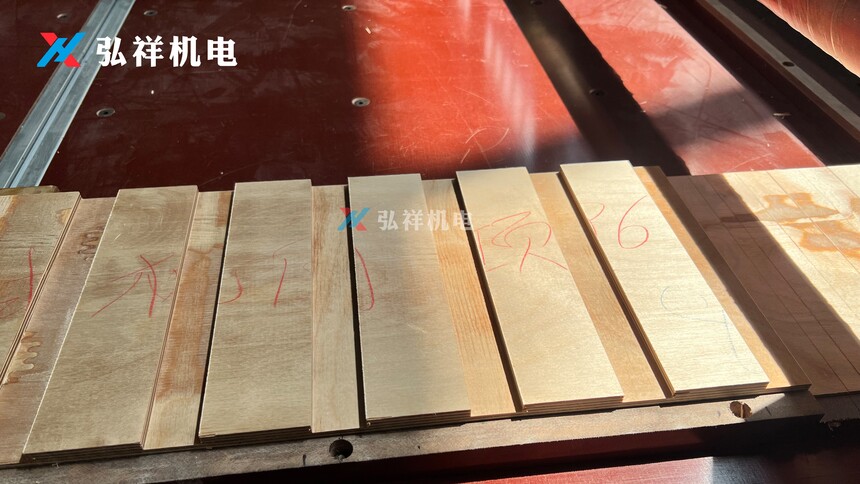

III. Specific Implementation and Benefits of Efficient and Damage-Free Processing The efficiency of CNC support bar grooving machines is demonstrated in multiple ways. For example, processing a laminated wood support bar for a 500 kV transformer using traditional methods requires four steps: sawing, rough milling, fine milling, and deburring, taking approximately 30 minutes. In contrast, CNC support bar grooving machines complete all steps in about 8 minutes through single clamping and multi-tool cooperative operations, improving efficiency by nearly fourfold. For batch production, the equipment can be equipped with automatic loading/unloading systems and multi-layer worktables, enabling 24-hour continuous operation with a daily production capacity exceeding 2,000 pieces. Damage-free processing is achieved through a series of precise controls. The machine spindle employs electric spindle technology, with speeds exceeding 20,000 rpm, enabling "high-speed light cutting" to significantly reduce cutting force per tooth. By optimizing the cutting path, the tool operates in a climb milling mode, ensuring rapid chip removal and preventing secondary cutting damage to the machined surface. Under scanning electron microscopy, the groove walls of processed support bars appear smooth and flat, with no micro-cracks, and the material’s fiber structure remains intact. Electrical performance tests show that the surface flashover voltage of CNC-grooved support bars increases by 10%–20%, and partial discharge levels decrease by an order of magnitude compared to traditionally processed products. IV. Quality Control System Under Stringent Process Requirements To meet the stringent requirements of insulation materials, CNC support bar grooving machines have established a comprehensive quality control system:
V. Practical Application Effects and Industry Impact CNC support bar grooving machines have been widely adopted by leading transformer manufacturers in China. For instance, at Pinggao Group’s ultra-high-voltage insulation component production line, the application of CNC support bar grooving machines increased the qualification rate of insulation support bars from 92% to 99.5%, shortened the production cycle by 40%, and saved millions of yuan in material costs annually. In the HVDC transmission transformer project of Xidian Group, the valve-side insulation support bars processed by this equipment successfully passed the ±800 kV long-term operating voltage test, fully meeting design requirements. Industry experts note that the widespread adoption of CNC support bar grooving machines is having profound impacts in multiple areas:
VI. Future Development Directions and Technological Prospects With the rapid development of smart grids and new energy, transformers are evolving toward higher efficiency, compactness, and intelligence, posing new demands for insulation component processing technology. The future development of CNC support bar grooving machines will likely include the following trends:
Conclusion As a revolutionary breakthrough in insulation material processing technology, CNC support bar grooving machines have fundamentally transformed the production of transformer insulation support bars through their customized design, efficient and damage-free processing, stringent quality control, and stable output. They not only address the shortcomings of traditional processing methods but also provide critical technical support for the development of transformers with higher voltage levels, larger capacities, and longer lifespans. Against the backdrop of energy transition driven by the "carbon peak and carbon neutrality" goals, the demand for efficient, reliable, and intelligent processing equipment in the power equipment manufacturing industry is increasingly urgent. With their outstanding technical performance and broad application prospects, CNC support bar grooving machines are becoming a vital engine for high-quality development in the transformer industry, contributing key capabilities to building a safe, reliable, green, and efficient modern power system. For transformer manufacturers, seizing this technological opportunity and accelerating the adoption and upgrading of CNC support bar grooving machines will be a strategic choice to enhance core competitiveness and an essential path to adapt to the challenges of the future energy revolution. |
