A New Revolution in Transformer Insulation Component Processing: How Integrated Machines Reshape Industry Standards?

Addressing this industry pain point, Hongxiang Electromechanical has innovatively developed the drilling, milling, and special-shaped cutting integrated machine. This achievement not only realizes the efficient integration of three core functions but also signifies the entry of transformer insulation component processing into a new era of intelligent and integrated manufacturing. This article will delve into how this intelligent manufacturing equipment redefines the standard paradigm for insulation component processing from multiple dimensions, including technical principles, application advantages, and industry impact.

The traditional processing workflow for transformer insulation components typically involves the following steps: first, positioning hole processing on a drilling machine; then, surface machining and contour forming on a milling machine; finally, transfer to dedicated cutting equipment for special-shaped cutting. This entire process requires at least 3-4 re-clampings. Each re-clamping introduces a positioning error of 0.05-0.1mm, with cumulative errors potentially exceeding 0.3mm, severely affecting the fit accuracy and insulation performance of the components.

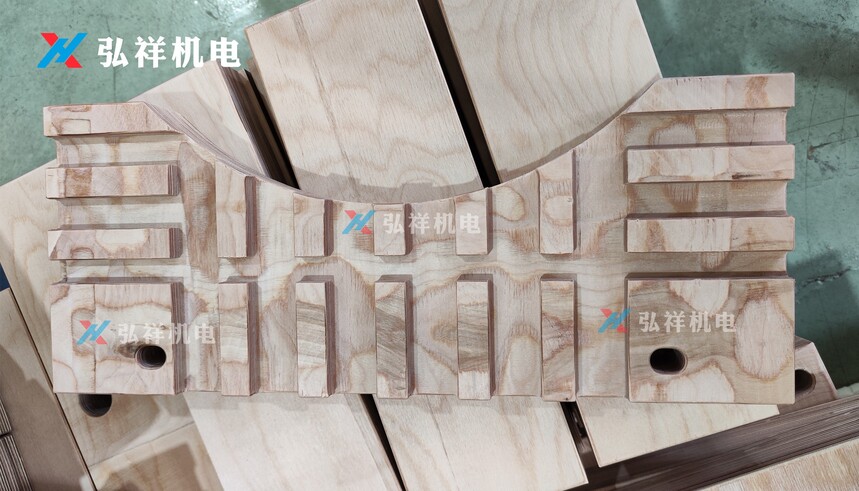

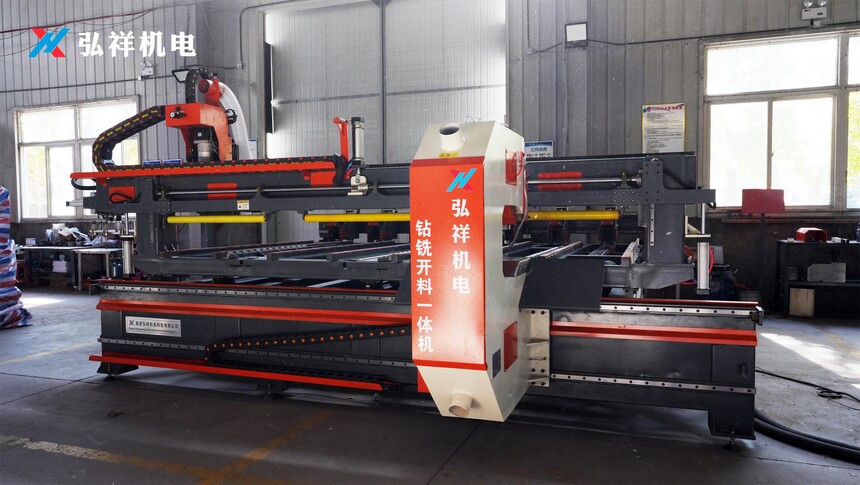

Hongxiang's integrated equipment adopts a modular structural design, innovatively integrating the three functional modules onto the same rigid platform. The equipment's foundational structure utilizes a natural granite bed, with a thermal expansion coefficient only one-third that of steel, ensuring minimal deformation during temperature fluctuations and long-term processing stability. The three-axis linear motor drive system, coupled with closed-loop control via linear encoders, achieves positioning accuracy of ±0.003mm and repeatability of ±0.002mm, fully meeting the micron-level precision requirements for UHV insulation components.

The equipment is equipped with the independently developed HX-IPC intelligent control system, employing a distributed control architecture based on real-time industrial Ethernet. The system has a built-in dedicated process database for transformer insulation components, containing optimized parameter combinations for over 30 common insulating materials such as epoxy resin boards, insulating pressboard, Nomex paper, and electrical laminated wood. Operators only need to input the material type, thickness, and processing drawings, and the system can automatically generate the optimal tool path, spindle speed, feed rate, and cooling strategy.

Particularly noteworthy is the system's adaptive compensation function. Through intelligent sensors installed on the spindle and tool holders, it monitors tool wear, vibration frequency, and cutting force changes in real-time. When tool wear reaches a preset threshold, the system automatically manages tool life, prompting replacement or activating wear compensation algorithms to ensure dimensional consistency. Addressing the characteristic susceptibility of insulating materials to delamination and chipping, the system specially developed a layered machining strategy, replacing single deep cuts with multiple shallow passes, effectively avoiding material damage.

Taking a typical 252kV transformer insulation barrier as an example, the traditional process requires: 25 minutes for drilling, 40 minutes for milling, 30 minutes for special-shaped cutting, plus about 15 minutes for three clamping and positioning operations, totaling approximately 110 minutes per piece. With the integrated equipment, all operations are completed in a single setup, reducing the total processing time to 55 minutes—a precise 100% efficiency increase.

This efficiency gain is even more significant in batch production. The equipment's configured dual-station pallet changer allows for workpiece loading/unloading on one station while machining occurs on the other, enabling truly uninterrupted continuous production. Combined with an automated material storage system and robotic loading/unloading, 24/7 unmanned operation is achievable. Actual application data shows that on a production line with a monthly output of 2,000 pieces, the integrated equipment can reduce operators from 6 to 2, increase equipment utilization from 65% to over 85%, and lower comprehensive production costs by approximately 40%.

The core of insulation component quality lies in dimensional accuracy and surface integrity. In traditional multi-machine processing, when workpieces are transferred between different machines, slight deformation and loss of positioning datum are inevitable. Especially for epoxy resin laminates over 50mm thick, elastic recovery after releasing clamping forces can cause 0.1-0.3mm deformation, seriously affecting subsequent process accuracy.

The integrated equipment's philosophy of "complete in one setup" fundamentally solves this issue. Comparative tests by German TÜV show that for insulation components processed on the integrated machine with identical materials and parameters, the CpK (Process Capability Index) for key dimensions increased from 1.2 with traditional processes to over 2.0, with dimensional dispersion reduced by 60%. In high-voltage tests, the partial discharge inception voltage of the insulation components improved by an average of 8-12%, directly translating into a significant increase in the safety margin for transformer operation.

Modern transformer products are developing in two directions: on one hand, standardized, serialized distribution transformers; on the other, highly customized special transformers (such as traction, rectifier, and furnace transformers). This requires processing equipment to meet both the economics of mass production and the flexibility for small-batch, high-mix production.

Hongxiang's integrated machine perfectly resolves this contradiction through an innovative architecture of "hardware modularization + software parameterization." At the hardware level, the equipment offers three spindle configurations: standard, high-speed, and heavy-duty, with speed ranges from 2,000-24,000 rpm and torque from 5-60 N·m, covering the full material spectrum from 0.5mm thin insulating paper to 120mm thick laminates. At the software level, the intelligent programming system based on MBD (Model-Based Definition) can directly import 3D models, automatically recognize features, and generate process chains, reducing the time from drawing to first article trial from the traditional 8 hours to 30 minutes.

Addressing the specific process needs of transformer insulation components, the equipment integrates several innovative functions:

A vacuum adsorption worktable system, with independently controlled zones, adapts to workpieces of different sizes. The suction cup layout can be automatically optimized based on the workpiece shape, ensuring stable clamping for thin sheet parts.

An ultrasonic-assisted machining module (optional) is particularly suitable for difficult-to-machine insulating materials like aramid paper and Nomex. Ultrasonic vibration can reduce cutting forces by 30-40%, minimize delamination and burrs, and improve edge quality.

An online inspection system, equipped with a laser scanner and touch probe, allows for real-time measurement of key dimensions during processing, achieving closed-loop control of machining-measurement-compensation. This is especially suitable for features with strict tolerance requirements, such as oil ducts and slots.

Although the initial investment for the integrated equipment is approximately 30% higher than a combination of individual machines, considering multiple factors comprehensively, the investment payback period typically does not exceed 18 months:

Equipment footprint is reduced by 50%, correspondingly lowering factory space rental costs. Calculated at a monthly industrial space rent of 40 RMB/square meter in East China, annual space cost savings amount to about 100,000 RMB.

Energy consumption is reduced by 35%. The total power of a traditional multi-machine setup is usually 45-60 kW, while the integrated equipment, through intelligent energy management, has an average operating power of only 28 kW, saving about 60,000 kWh of electricity annually, equivalent to approximately 50,000 RMB in electricity costs.

Tooling costs are optimized. Integrated processing reduces the need for special composite tools, increases the proportion of standard tool usage, reduces tool inventory types by 40%, and lowers procurement costs by 25%.

Quality costs in insulation component processing are often underestimated. The scrap rate in traditional processes is typically 3-5%, while the integrated equipment reduces the scrap rate to below 0.5% through process control. For an annual production of 50,000 insulation barriers at a unit price of 200 RMB, scrap reduction alone saves 250,000 to 450,000 RMB annually.

More importantly, the hidden benefit lies in the improvement of quality stability. Data from power equipment manufacturers shows that the average cost (including rework, transportation, compensation, etc.) to handle transformer field failures caused by insulation component quality issues is 50-100 times the value of the component itself. Components processed by the integrated equipment see an 80% reduction in field failure rates, bringing intangible benefits to customer brand value and market reputation that are difficult to quantify.

With the widespread application of integrated equipment, industry technical standards are undergoing profound changes. International standardization organizations like IEEE and IEC have begun discussions to revise standards related to insulation component manufacturing, focusing on adding new quality evaluation metrics such as "one-shot accuracy" and "feature positional accuracy." These are precisely the weak points of traditional processes but the strengths of integrated equipment.

Leading domestic transformer manufacturers, such as TBEA, XD Group, and Tianwei Baobian, have explicitly stated in their new product development specifications that key insulation components should prioritize integrated processing technology. This marks the industry's transition from an "experience-driven" to a "data-driven" quality control model.

Integrated equipment not only changes the insulation component manufacturing link but also transmits new requirements to upstream material suppliers and downstream transformer manufacturers:

Material suppliers need to provide more accurate material performance data, especially the processing characteristic parameters of anisotropic materials. This data will be directly input into the equipment's process database to achieve the best "material-process" match.

Transformer design departments need to adopt DFM (Design for Manufacturability) principles, considering the characteristics of integrated processing at the insulation component design stage, such as rationally arranging feature locations, optimizing tolerance allocation, and reducing clamping interference. This, in turn, promotes the optimization of overall transformer design.

The new generation of integrated equipment will incorporate digital twin systems, constructing a complete virtual mirror of the equipment in cyberspace that maps the physical equipment's operational status in real-time. Through big data analysis, it can predict the remaining lifespan of key components like spindle bearings, guides, and ball screws in advance, achieving predictive maintenance and reducing unplanned downtime by 90%.

Based on the Industrial Internet platform, multiple pieces of equipment distributed in different locations can share process data, perform remote diagnostics, and optimize programs. When a factory receives an urgent order, it can directly call upon mature, verified process parameters from other factories, achieving "plug-and-play" flexible capacity deployment. This is particularly significant for meeting peak demand during power construction phases.

The AI algorithms built into the equipment continuously learn from processing data to automatically optimize cutting parameters. For example, by analyzing slight differences in material properties between batches, it automatically adjusts feed rates; by recognizing tool wear patterns, it optimizes tool change strategies. The system can also learn from failure cases, build an expert knowledge base, and provide intelligent guidance to new operators.

The launch of Hongxiang Electromechanical's drilling, milling, and special-shaped cutting integrated machine is not just the introduction of a new product; it represents a paradigm shift in transformer insulation component manufacturing. It addresses the long-standing industry challenges of efficiency, precision, and cost through technological innovation, elevates quality standards through process innovation, and restructures industry chain collaboration through business model innovation.

Amidst the dual waves of global energy transition and smart manufacturing, integrated processing technology is evolving from an optional solution to a necessary choice. For transformer manufacturers, this is not merely an upgrade in manufacturing equipment but a comprehensive leap in quality systems, management philosophy, and competitive capability. Enterprises that embrace this transformation early will gain a significant first-mover advantage in future market competition.

With the integration and application of new technologies like 5G, the Industrial Internet, and Artificial Intelligence, integrated equipment will continue to evolve, progressing from current functional integration to higher levels of intelligent collaboration. The ultimate goal is to achieve complete autonomy and a high degree of intelligence in insulation component manufacturing, providing the global power industry with more reliable, economical, and environmentally friendly insulation solutions, and playing an indispensable foundational supporting role in the energy revolution.
