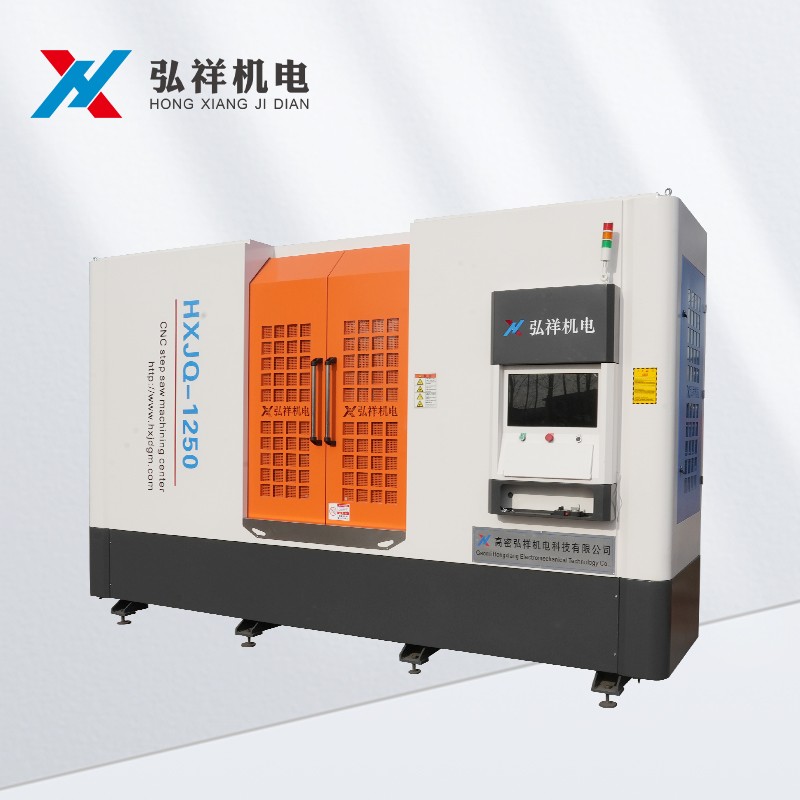

Stepped cushion machining center

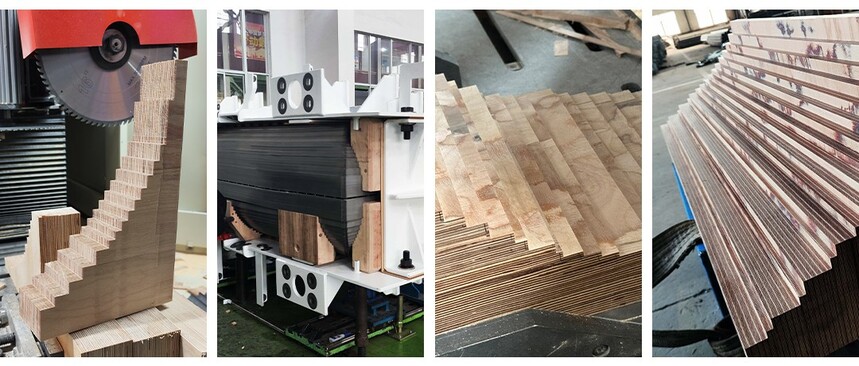

The equipment is a fully automatic processing equipment designed and developed for the processing of transformer iron core step pad. Obtained the national utility model patent, patent number: ZL202421200547.1. With a high degree of automation, safety and ease of use, the device significantly improves production efficiency and product quality.

Intelligent automatic processing, no programming, directly input the step size through the human-machine interface, the system automatically generates the optimal sawing path. Three processing modes (square material processing, oblique material processing, L-shaped material processing) can be selected according to the existing materials to ensure the material utilization rate and achieve the purpose of material saving. Servo motor + linear guide rail is used to control the saw blade movement, the accuracy can reach ±0.1mm, to ensure the size consistency of the step pad. The cutting surface is smooth without burrs, no burning and no carbonization. Fully enclosed structure, integrated negative pressure dust collection system, dust collection rate > 90%. Equipped with safety lock, the material taking door is automatically locked and cannot be opened when the equipment is working.

By combining mechanical automation, intelligent control and industrial design, the equipment provides transformer equipment manufacturers with a comprehensive upgrade path from efficiency improvement and quality control to ESG (environment, safety, governance) compliance.
